All products

Iridium 9602N LBT Module (SBD only)

Iridium 9602N Modem

Antenna Interface: SMA Female
I/O Interface: 15-Pin D-Sub

In The Box:
LT-4210S Control Unit
LT-3120 Handset
LT-3121 Cradle
LT-4230 Antenna Unit
Bracket Mount, Control Unit
Power Cable, 3m
Stainless steel A4 screws for mounting
User & Installation Manual
Unit Test Sheets

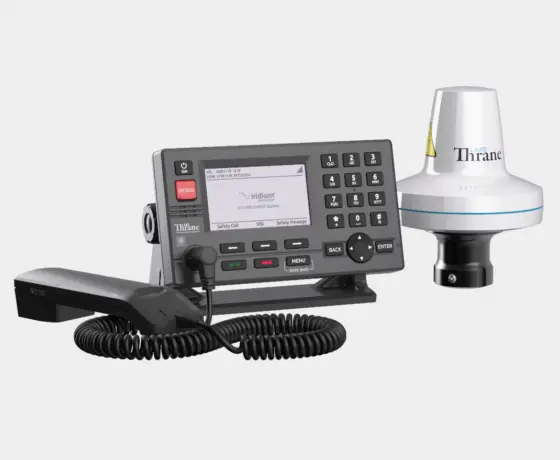

Lars Thrane LT-3100S GMDSS System

Consists of LT-3110 Control Unit, LT-3120 Handset, LT-3121 Cradle, LT-3130 Antenna Unit, Control Unit, 3m Power Cable, User and Installation manual

(Bracket mount no longer included***)


LT-3100S GMDSS System
Specifications:
LT-3110S Control Unit
Weight: 658 g (1.45 lbs)
Dimensions: 224.0 x 120.0 x 70.0 mm (8.82 x 4.72 x 2.76 in)
Temperature, operational: -15°C to +55°C (+5°F to +131°F)
IP rating, dust and water: IP32
LT-3120 Handset Unit
Weight: 290 g (0.64 lbs)
Dimensions: 208.8 x 52.8 x 38.2 mm (8.22 x 2.08 x 1.50 in)
Temperature, operational: -15°C to +55°C (+5°F to +131°F)
IP rating, dust and water: IP32
LT-3130 Antenna Unit
Weight: 687 g (1.51 lbs)
Dimensions: 151.1 x Ø 149.5 mm (5.95 x Ø 5.89 in)
Temperature, operational: -40°C to +55°C (-40°F to +131°F)
IP rating, dust and water: IP67


In order to meet Iridium compliance, both the terminal installer and the person inserting the SIM card (Provisioning the terminal at point of activation) have to have been trained by Lars Thrane prior to installation.

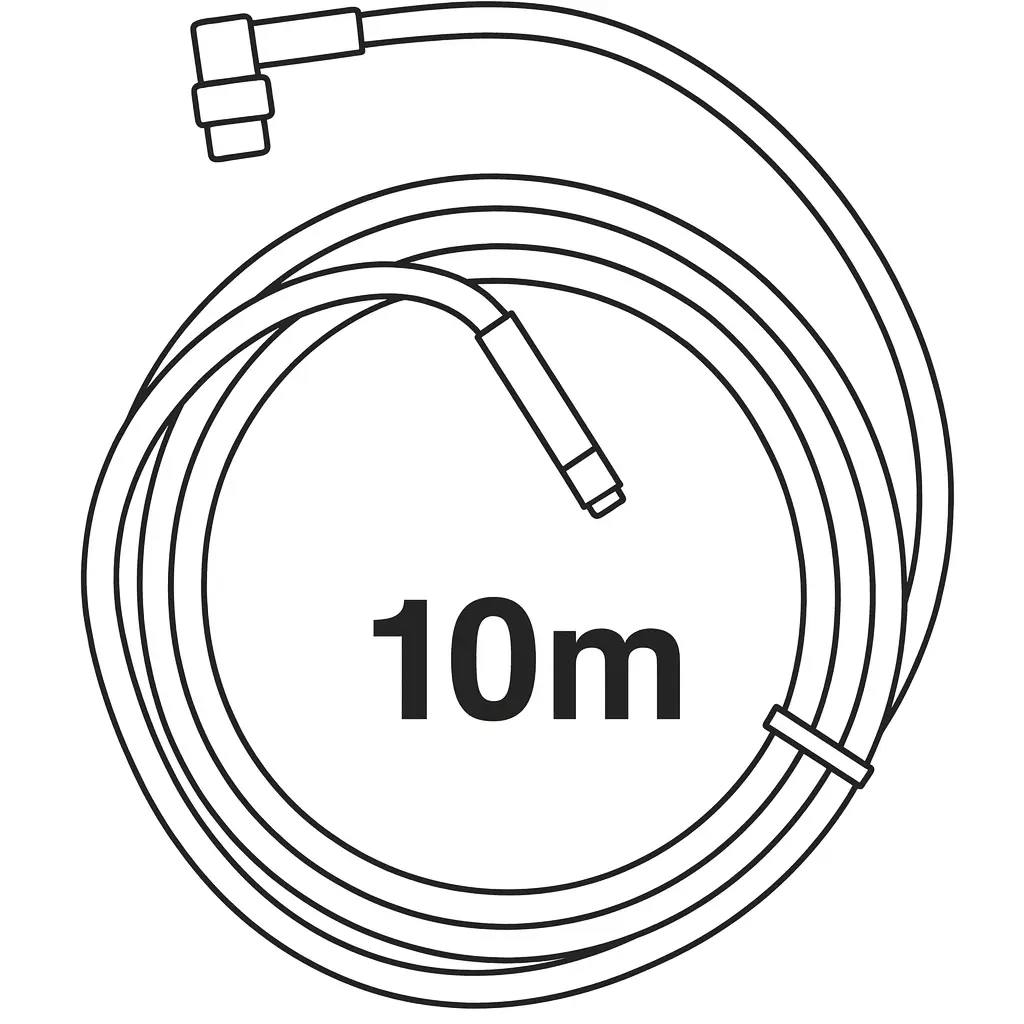

10m Cable
N terminated one end
Uncrimped and supplied with N termination
Diameter 10.3mm

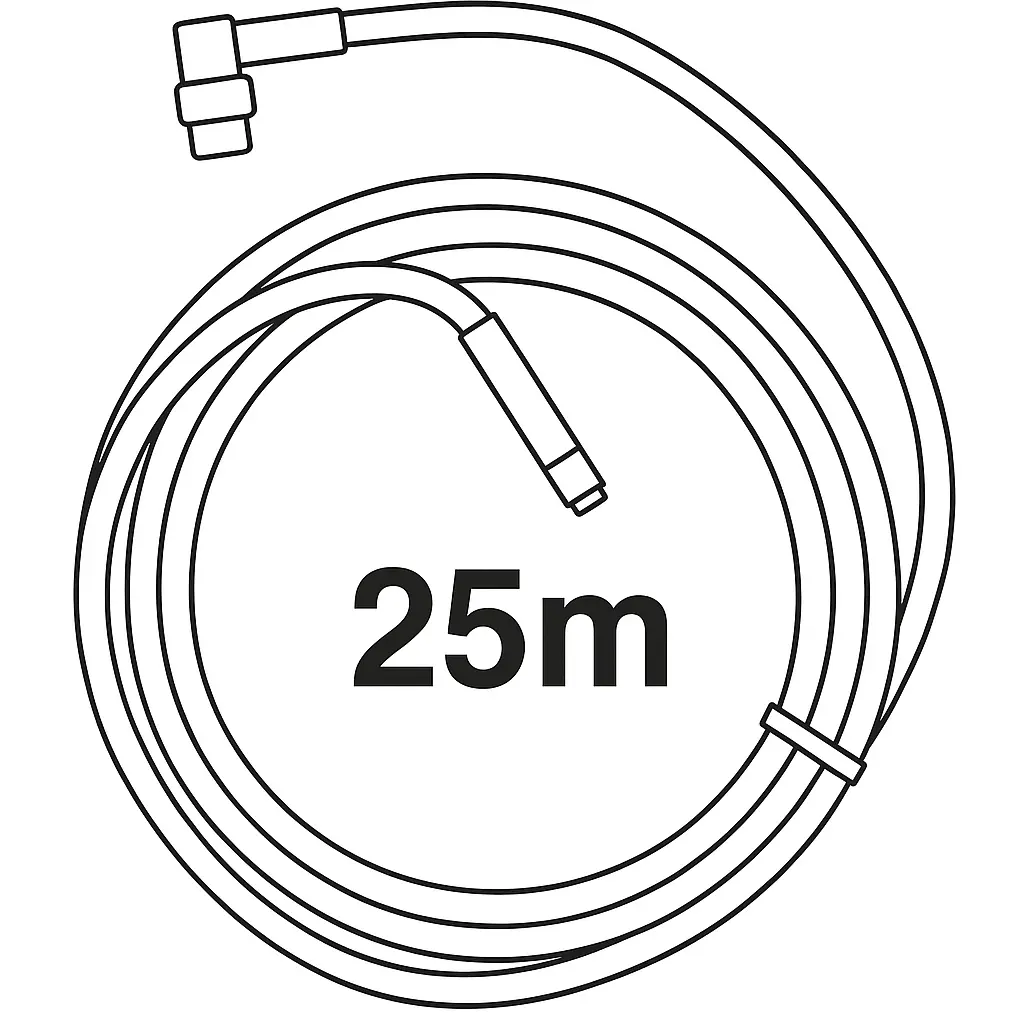

25m Cable
N terminated one end
Uncrimped and supplied with N termination
Diameter 10.3mm

We will endeavour to process the topup within 90 minutes during business hours, outside of business hours within 6 hours.

If we fail to meet these deadlines the order will still be processed as soon as possible but the rush fee will be waived.

This charge will not be waived for erroneous orders and orders for SIM cards we have not supplied.
